Batch Weighing Controller Suppliers Weighing Scale Controller

Name: Batch Weighing Controller Suppliers Weighing Scale Controller
Brand: Brans
Price: 1 USD

Brand Name : Brans

Model Number : HK320

Place of Origin : China

MOQ : 1pcs

Payment Terms : L/C, T/T, Western Union,Paypal

Delivery Time : 5-7 work days

Packaging Details : Standard exporter carton packing including of instructions. Water Proof & Shock Resistance

Measurement Type : Weight Measurement

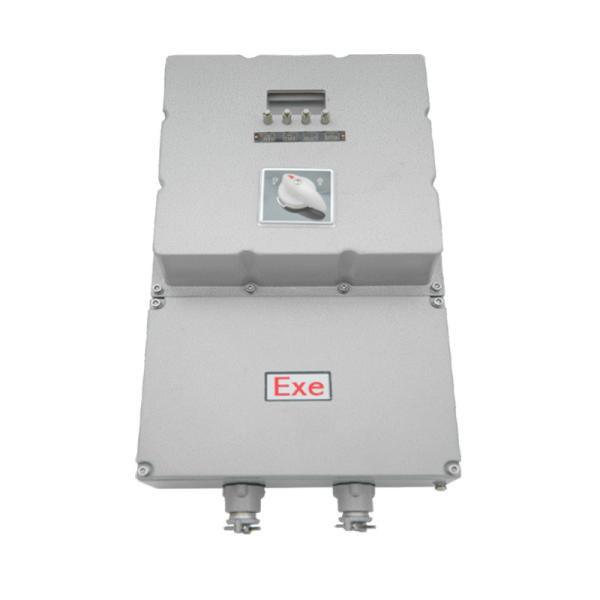

Enclousures : Panel-type, dust-proof and explosion-proof

Menu : Chinese and English

Input Load : Drive up to 1-6 load cells(350Ω)

Inputs and Outputs : 4 Inputs and 8 Outputs

Calibration : Weight-free calibration supported

Com.Protocol : Continue type,MODBUS-RTU,PROFIBUS-DP

Analog Output : 0~5V, 0~10V, -5V~+5V,- 10V~+ 10V, 0-20mA, 4~20mA,0~24mA

Contact Now

IP 65 OLED Weighing Controller For Batcching And Blending Applications (HK320)

Product Description:

The HK320 is intended for high precision weighing systems, accurately realizing the conversion, display and transmission of weigh signals. The weighing controller delivers diverse connectivity options and compatibility with all analog output load cells. It is available in different versions: Panel-type, dust-proof, and explosion-proof enclosures(explosion-proof certification: Exd IIB T6Gb) ,suitable for various installation scenarios. Besides, It has multilingual menu and 4 simple buttons for intuitive operation.

Brans are always devoted to deliver satisfied and favourable services to each our clients to meet their specific needs. We deeply understand that each apllication is different and requires a customized response.To make sure
providing the best solution, the product can be adapted to meet customer requirements.

Features:

OLED yellow-green full dot matrix display
Chinses and English menu optional;for intuitive operation
Calibration is performed with or without test weights
Rich logical control functions: single-material incremental/decremental batching;
four-material incremental batching;preset point function
Drving up to 1-6 load cells (350Ω)
Panel-type,dust-proof and explosion-proof enclosures optional,suitable for various installation scenarios
Analog output:0~5V, 0~10V, -5V~+5V, -10V~+ 10V, 0~20 mA, 4-20mA, 0-24mA
AD acquisition is 200 times/sec, and with strong anti-interference performance
Multiple Interface possibilities :RS232, RS485 support Modbus RTU,expandable Profibus-DP/ProfiNet/Ethernet/IP
Stainless steel housing for table and wall mounting or cabinet mouting;easy to use
Suitable for chemical and pharmaceutical ingredients,filling,large tanks in mixing stations,reactors weighing and measuring,high and low material level relay output to PLC,DCS system control valve switches

Specifications:

Display	OLED yellow-green full dot matrix display, display area 128*64mm
Display resolution	100,000
Weighing platform	1pc analog platform
Min.input interval	0.6μV/d
Input Load	Drive up to 1~6 load cells (350Ω)
Communication port(standard type)	RS485 or RS232 interface two options I/O: one input and four outputs
Communication port(optional)	Inputs and outputs/interfaces: 4 inputs and 8 outputs Analog output: 0~5V, 0~10V, -5V~+5V,- 10V~+ 10V, 0-20mA, 4~20mA,0~24mA Protocol:Continue type, MODBUS-RTU,PROFIBUS-DP
A/D Conversion rate	200Hz
Excitation voltage	5VDC
Power supply	+24VDC (± 15%), power <6W
Keyboard	4 touch buttons
Operation temp. range	- 10°~ 40°C (14°~ 104 °F) Humidity: 10% ~ 95%; non-condensing
Dimension(LWH)	110mm116mm65mm
Material	Stainless Steel housing with OLED display and operator panel
IP Class	IP 65

Screen and Keyboard:

Batch Weighing Controller Suppliers Weighing Scale Controller

Interface:
Batch Weighing Controller Suppliers Weighing Scale Controller

Dimensions(mm):

Batch Weighing Controller Suppliers Weighing Scale Controller

Information:

Status Signal	Description
~	Steady state symbol,on when dynamic,off when static
B/G	Gross weight
Net	Net weight
Kg	Unit:kg
Stop	Stop
Run	Run
On/Off	PROFIBUS,ONLINE,OFFLINE
>>	Fast feed
>	Slow feed

Packaging and Shipping

To ensure safe arrival at your location, the product will be carefully packaged and shipped. The packing process is as follows:

1. The product will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the product from moving during shipping.
3. The product will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
